3.1. Validation: Gene signatures

📘 Overview

This notebook performs quality control on raw count data to filter out low-quality cells, and then uses DESeq2 to compute differential gene expression signatures (compound vs. DMSO) for each compound.

Inputs

Raw gene expression count matrix

Output

An AnnData file with DESeq2 differential expression results (log₂ fold changes, adjusted p-values)

[ ]:

import numpy as np
import pandas as pd
import anndata as ad

import seaborn as sns
import matplotlib.pyplot as plt

import dilimap as dmap

[ ]:

%load_ext autoreload
%autoreload 2

[ ]:

dmap.logging.print_version()

Pull raw data

[4]:

adata = dmap.s3.read('validation_data_counts.h5ad', package_name='public/data')

Package: s3://dilimap/public/data. Top hash: dd0504e0f5

[5]:

from dilimap.utils import platemap

[6]:

## Example plate design

adata.obs['WELL_ROW'] = adata.obs['WELL_ID'].str[0]
adata.obs['WELL_COL'] = adata.obs['WELL_ID'].str[1:]

data = adata[adata.obs['PLATE_NAME'] == 'APP1_S1']

CMPD_COLOR = (
    data.obs['COMPOUND']
    .map(
        {
            'DMSO': 'seashell',
            'DMSO_replaced': 'seashell',
            'Chlorpromazine': 'lightsalmon',
        }
    )
    .fillna('lightblue')
)
CMPD_COLOR_OPACITY = '; opacity: ' + data.obs['DOSE_LEVEL'].astype(str).map(
    {'Control': '1', 'Low': '.4', 'Middle': '.6', 'Mid-High': '.8', 'High': '1'}
)


def highlight_cells(x):
    return (
        'background-color: '
        + x.map(dict(zip(data.obs['CMPD_DOSE'], CMPD_COLOR))).fillna('white')
        + x.map(dict(zip(data.obs['CMPD_DOSE'], CMPD_COLOR_OPACITY)))
    )


df_cmpd_map = platemap(data, value_key='CMPD_DOSE', batch='PLATE_NAME')

col_borders = dict(subset=['4', '8'], **{'border-right': '1.5pt solid black'})
row_borders = dict(
    subset=(df_cmpd_map.index.str.endswith(('A', 'D', 'G')), df_cmpd_map.columns),
    **{'border-top': '1.5pt solid black'},
)

display(
    df_cmpd_map.style.apply(highlight_cells)
    .set_properties(**col_borders)
    .set_properties(**row_borders)
)

	1	2	3	4	5	6	7	8	9	10	11	12
APP1_S1_A	Orelabrutinib_High	Orelabrutinib_Mid-High	Orelabrutinib_Middle	Orelabrutinib_Low	Ibrutinib_High	Ibrutinib_Mid-High	Ibrutinib_Middle	Ibrutinib_Low	Remibrutinib_High	Remibrutinib_Mid-High	Remibrutinib_Middle	Remibrutinib_Low
APP1_S1_B	Orelabrutinib_High	Orelabrutinib_Mid-High	Orelabrutinib_Middle	Orelabrutinib_Low	Ibrutinib_High	Ibrutinib_Mid-High	Ibrutinib_Middle	Ibrutinib_Low	Remibrutinib_High	Remibrutinib_Mid-High	Remibrutinib_Middle	Remibrutinib_Low
APP1_S1_C	Orelabrutinib_High	Orelabrutinib_Mid-High	Orelabrutinib_Middle	Orelabrutinib_Low	Ibrutinib_High	Ibrutinib_Mid-High	Ibrutinib_Middle	Ibrutinib_Low	Remibrutinib_High	Remibrutinib_Mid-High	Remibrutinib_Middle	Remibrutinib_Low
APP1_S1_D	Evobrutinib_High	Evobrutinib_Mid-High	Evobrutinib_Middle	Evobrutinib_Low	BMS-986142_High	BMS-986142_Mid-High	BMS-986142_Middle	BMS-986142_Low	Rilzabrutinib_High	Rilzabrutinib_Mid-High	Rilzabrutinib_Middle	Rilzabrutinib_Low
APP1_S1_E	Evobrutinib_High	Evobrutinib_Mid-High	Evobrutinib_Middle	Evobrutinib_Low	BMS-986142_High	BMS-986142_Mid-High	BMS-986142_Middle	BMS-986142_Low	Rilzabrutinib_High	Rilzabrutinib_Mid-High	Rilzabrutinib_Middle	Rilzabrutinib_Low
APP1_S1_F	Evobrutinib_High	Evobrutinib_Mid-High	Evobrutinib_Middle	Evobrutinib_Low	BMS-986142_High	BMS-986142_Mid-High	BMS-986142_Middle	BMS-986142_Low	Rilzabrutinib_High	Rilzabrutinib_Mid-High	Rilzabrutinib_Middle	Rilzabrutinib_Low
APP1_S1_G	DMSO_Control	DMSO_Control	DMSO_Control	DMSO_Control	DMSO_Control	DMSO_Control	DMSO_Control	DMSO_Control	Chlorpromazine_High	Chlorpromazine_High	Chlorpromazine_High	Chlorpromazine_High

QC (total counts, mtRNA, rRNA)

[7]:

adata.obs['LDH_QC'].value_counts()

[7]:

LDH_QC
              763
tech error     12
cell death      5
Name: count, dtype: int64

[8]:

adata.obs['ldh_qc_pass'] = adata.obs['LDH_QC'] == ''

[9]:

## QC of total counts and mtRNA

dmap.pp.qc_metrics(adata)

thresh_counts = (
    np.median(adata.obs['log_totalRNA']) - 2.5 * adata.obs['log_totalRNA'].std()
)
adata.obs['rna_qc_pass'] = (adata.obs['log_totalRNA'] > thresh_counts) & (
    adata.obs['pct_mtRNA'] < 9
)

Added the following to `adata.obs`: ['log_totalRNA', 'pct_mtRNA', 'pct_rRNA']

[10]:

fig, axs = plt.subplots(1, 3, figsize=(12, 3), gridspec_kw={'wspace': 0.4})

sns.histplot(adata.obs['log_totalRNA'], bins=50, ax=axs[0])
sns.histplot(adata.obs['pct_mtRNA'], bins=200, ax=axs[1])
sns.histplot(adata.obs['pct_rRNA'], bins=50, ax=axs[2])

axs[1].set_xlim(0, 20)

axs[0].axvline(thresh_counts, c='k')
axs[1].axvline(9, c='k')
axs[2].axvline(9, c='k')

plt.show()

../_images/reproducibility_3.1_Validation_Gene_Signatures_12_0.png

[11]:

## Example plate with QC metrics

data = adata[adata.obs['PLATE_NAME'] == 'APP1_S1']


def color_boolean(val):
    return f'color: {"lightred" if val else ""}; font-weight: {"bold" if val else ""}'


for val in ['log_totalRNA', 'pct_mtRNA']:
    print(f'\033[1m{val}')

    df = platemap(data, val, batch='PLATE_NAME')
    df_bool = np.invert(platemap(data, 'rna_qc_pass', batch='PLATE_NAME').astype(bool))

    if val != 'notes_flags':
        mu, std = np.median(data.obs[val]), np.std(data.obs[val])

        display(
            df.style.format(precision=2)
            .background_gradient(vmin=mu - 3 * std, vmax=mu + 3 * std, cmap='RdBu_r')
            .apply(lambda c: df_bool[c.name].apply(color_boolean))
            .applymap(lambda x: 'background-color: white' if pd.isnull(x) else '')
            .set_properties(**col_borders)
            .set_properties(**row_borders)
        )

    else:
        display(
            df.style.format(precision=2)
            .apply(lambda c: df_bool[c.name].apply(color_boolean))
            .applymap(lambda x: 'background-color: salmon' if x != '' else '')
            .set_properties(**col_borders)
            .set_properties(**row_borders)
        )

log_totalRNA

/var/folders/lz/prv79nmj5msg8h6nzqn0w7cw0000gn/T/ipykernel_23937/2583658983.py:22: FutureWarning: Styler.applymap has been deprecated. Use Styler.map instead.
  .applymap(lambda x: 'background-color: white' if pd.isnull(x) else '')

	1	2	3	4	5	6	7	8	9	10	11	12
APP1_S1_A	6.35	6.40	6.35	6.33	6.27	6.27	6.31	6.31	6.29	6.33	6.21	6.27
APP1_S1_B	6.32	6.43	6.68	6.64	6.59	6.57	6.64	6.61	6.59	6.61	6.60	6.57
APP1_S1_C	6.57	6.57	6.51	6.51	6.47	6.44	6.50	6.52	6.46	6.49	6.40	6.45
APP1_S1_D	6.63	6.73	6.71	6.62	6.54	6.57	6.63	6.60	6.59	6.60	6.55	6.57
APP1_S1_E	6.27	3.68	6.31	6.50	6.54	6.58	6.61	6.53	6.51	6.48	6.52	6.55
APP1_S1_F	6.57	6.61	6.58	6.47	6.39	6.42	6.48	6.46	6.42	6.36	6.34	6.37
APP1_S1_G	6.51	6.55	6.51	6.51	6.45	6.45	6.49	6.48	6.46	6.47	6.45	6.45

pct_mtRNA

/var/folders/lz/prv79nmj5msg8h6nzqn0w7cw0000gn/T/ipykernel_23937/2583658983.py:22: FutureWarning: Styler.applymap has been deprecated. Use Styler.map instead.
  .applymap(lambda x: 'background-color: white' if pd.isnull(x) else '')

	1	2	3	4	5	6	7	8	9	10	11	12
APP1_S1_A	3.03	3.66	3.40	3.43	3.15	3.56	3.45	3.03	2.94	3.51	3.23	3.18
APP1_S1_B	3.88	3.55	3.26	3.27	2.95	3.35	3.36	3.07	3.64	3.20	3.18	3.14
APP1_S1_C	3.94	3.69	3.53	3.55	3.08	3.51	3.72	3.26	3.83	3.72	3.68	3.56
APP1_S1_D	2.98	4.92	4.08	4.06	3.10	3.79	3.94	3.73	2.98	3.69	3.56	3.50
APP1_S1_E	5.96	3.86	6.88	3.95	3.54	3.41	3.63	3.61	3.83	3.74	3.25	3.35
APP1_S1_F	4.35	4.58	4.15	4.21	3.74	3.38	3.75	3.42	3.95	3.63	3.32	3.22
APP1_S1_G	3.67	3.60	3.32	3.38	3.54	3.54	3.91	3.34	2.73	2.59	2.70	2.51

QC (cross-replicate correlation)

[12]:

dmap.pp.qc_cross_rep_correlation(adata, group_key='CMPD_DOSE', plate_key='PLATE_NAME')

Added the following to `adata.obs`: ['cross_rep_correlation', 'rep_corr_qc_pass']

[13]:

fig, ax = plt.subplots(1, 1, figsize=(4, 3), gridspec_kw={'wspace': 0.4})

sns.histplot(
    adata.obs['cross_rep_correlation'][
        adata.obs['ldh_qc_pass'] & adata.obs['rna_qc_pass']
    ],
    bins=100,
    ax=ax,
)
ax.axvline(0.99, c='k')

plt.show()

../_images/reproducibility_3.1_Validation_Gene_Signatures_16_0.png

[14]:

## Example plate with cross-replicate correlations

data = adata[adata.obs['PLATE_NAME'] == 'APP1_S1']

val = 'cross_rep_correlation'

df = platemap(data, val, batch='PLATE_NAME')
df_bool = np.invert(
    platemap(data, 'rep_corr_qc_pass', batch='PLATE_NAME').fillna(False).astype(bool)
)
mu, std = np.nanmean(data.obs[val]), np.nanstd(data.obs[val])

col_borders = dict(subset=['4', '8'], **{'border-right': '1.5pt solid black'})
row_borders = dict(
    subset=(df.index.str.endswith(('A', 'D', 'G')), df.columns),
    **{'border-top': '1.5pt solid black'},
)

print(val, f'CI=[{mu - 2 * std:0.3f},{1}]')
display(
    df.style.format(precision=3)
    .background_gradient(vmin=mu - 5 * std, vmax=1, cmap='Reds_r')
    .apply(lambda c: df_bool[c.name].apply(color_boolean))
    .applymap(lambda x: 'background-color: white' if pd.isnull(x) else '')
    .set_properties(**col_borders)
    .set_properties(**row_borders)
)

cross_rep_correlation CI=[0.964,1]

/var/folders/lz/prv79nmj5msg8h6nzqn0w7cw0000gn/T/ipykernel_23937/2197300645.py:21: FutureWarning: Styler.applymap has been deprecated. Use Styler.map instead.
  .applymap(lambda x: 'background-color: white' if pd.isnull(x) else '')

	1	2	3	4	5	6	7	8	9	10	11	12
APP1_S1_A	0.929	0.998	0.997	0.998	0.956	0.997	0.997	0.997	0.976	0.997	0.998	0.998
APP1_S1_B	0.999	0.999	0.999	0.998	0.999	0.998	0.996	1.000	0.998	0.998	0.999	0.999
APP1_S1_C	0.999	0.999	0.999	0.998	0.999	0.998	0.997	1.000	0.998	0.998	0.999	0.999
APP1_S1_D	0.915	0.998	0.998	0.998	0.930	0.998	0.997	0.999	0.973	0.999	0.999	0.999
APP1_S1_E	0.994	0.964	0.988	0.998	0.999	0.999	0.997	0.999	0.999	0.999	0.999	0.999
APP1_S1_F	0.994	0.998	0.998	0.998	0.999	0.999	0.997	0.999	0.999	0.999	0.998	0.999
APP1_S1_G	0.998	0.998	0.999	0.999	0.999	0.999	0.999	0.999	0.999	0.999	0.998	0.999

[15]:

from natsort import index_natsorted

sns.set(font_scale=0.8)

df_cmpd_flags = data.obs[~data.obs['rep_corr_qc_pass']]['COMPOUND'].value_counts()
df_cmpd_flags = df_cmpd_flags[~df_cmpd_flags.index.str.contains('DMSO')]
cmpd_flags = df_cmpd_flags.index[:8]

fig, axs = plt.subplots(
    1, len(cmpd_flags), figsize=(5 * len(cmpd_flags), 3), gridspec_kw={'wspace': 0.5}
)
for i, cmpd_name in enumerate(cmpd_flags):
    df_sub = data[data.obs['COMPOUND'] == cmpd_name].to_df()
    df_sub.index = data[data.obs['COMPOUND'] == cmpd_name].obs['WELL_ID']

    df_sub_corr = df_sub.T.corr()
    idx_sort = index_natsorted(df_sub_corr.index.str[1:] + df_sub_corr.index.str[0])
    df_sub_corr = df_sub_corr.iloc[idx_sort, idx_sort]

    g = sns.heatmap(df_sub_corr, vmax=1, vmin=0.9, yticklabels=True, ax=axs[i])

    flagged = (
        data[(data.obs['COMPOUND'] == cmpd_name) & ~data.obs['rep_corr_qc_pass']]
        .obs['WELL_ID']
        .values
    )
    for label in g.get_yticklabels():
        if label.get_text() in flagged:
            label.set_color('red')

    axs[i].set_title(cmpd_name)

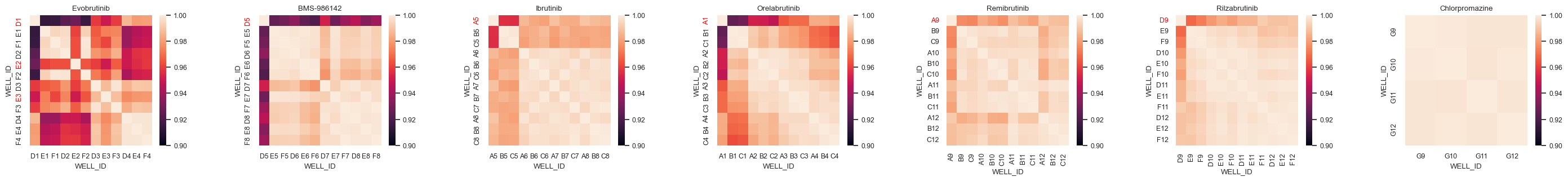

../_images/reproducibility_3.1_Validation_Gene_Signatures_18_0.png

[16]:

cmpd_flags = ['DMSO', 'Chlorpromazine']

fig, axs = plt.subplots(
    1, len(cmpd_flags), figsize=(5 * len(cmpd_flags), 3), gridspec_kw={'wspace': 0.5}
)
for i, cmpd_name in enumerate(cmpd_flags):
    df_sub = data[data.obs['COMPOUND'] == cmpd_name].to_df()
    df_sub.index = data[data.obs['COMPOUND'] == cmpd_name].obs['PLATE_NAME'].astype(str)

    df_sub_corr = df_sub.T.corr()
    idx_sort = index_natsorted(df_sub_corr.index.str[1:] + df_sub_corr.index.str[0])
    df_sub_corr = df_sub_corr.iloc[idx_sort, idx_sort]

    g = sns.heatmap(df_sub_corr, vmax=1, vmin=0.9, yticklabels=4, ax=axs[i])

    flagged = (
        data[(data.obs['COMPOUND'] == cmpd_name) & ~data.obs['rep_corr_qc_pass']]
        .obs['WELL_ID']
        .values
    )
    for label in g.get_yticklabels():
        if label.get_text() in flagged:
            label.set_color('red')

    axs[i].set_title(cmpd_name)

../_images/reproducibility_3.1_Validation_Gene_Signatures_19_0.png

QC (hepatocyte fidelity sanity check)

[17]:

# Log-normalize total counts (similar to sc.pp.normalize_total and sc.pp.log1p)

X = adata.X if isinstance(adata.X, np.ndarray) else adata.X.toarray()
cell_sums = X.sum(axis=1, keepdims=True)
X_norm = (X / cell_sums) * np.median(cell_sums)
X_norm = np.log10(X_norm + 1)

adata_norm = ad.AnnData(X=X_norm, obs=adata.obs, var=adata.var)

/opt/anaconda3/envs/py310/lib/python3.10/site-packages/anndata/_core/anndata.py:1756: UserWarning: Observation names are not unique. To make them unique, call `.obs_names_make_unique`.
  utils.warn_names_duplicates("obs")

[18]:

# Celltype markers curated from https://panglaodb.se/markers.html and https://pmc.ncbi.nlm.nih.gov/articles/PMC6687507

marker_celltypes = {
    # Hepatocytes, cluster 14 in liver atlas
    'Hepatocytes': [
        'ALB',
        'CYP3A4',
        'APOA1',
        'APOA2',
        'APOC3',
        'TF',
        'APOH',
        'ALDOB',
        'TTR',
        'GSTA2',
    ],
    # Kupffer, from panglaodb
    'Kupffer': ['C1QB', 'C1QA', 'CD163', 'MAFB', 'CSF1R', 'CLEC4F', 'FCNA', 'ADGRE1'],
    # Liver Sinusoidal Endothelial Cells (LSEC), cluster 9 in liver atlas
    'LSEC': ['EGFL7', 'FLT1', 'CLEC4M', 'CLEC4G', 'FCN3', 'STAB1', 'DNASE1L3'],
    # Hepatic Stellate Cells (HSC), from panglaodb
    'HSC': ['IGFBP6', 'COL1A2', 'SPARC', 'TPM2', 'COL3A1', 'MYL9', 'DCN'],
    # Cholangiocyte, cluster 4+7 in liver atlas
    'Cholangiocyte': ['AGR2', 'ELF3', 'CLDN4', 'KRT7', 'AQP1'],  # "KRT19",
    # Dedifferentiation, low in mature, high in dedifferentiated
    'Dedifferentiated': [
        'KRT19',  # Biliary/progenitor marker
        'EPCAM',  # Also indicates epithelial progenitors
        'LAMB1',  # ECM remodeling and stress-induced dedifferentiation
        'PROM1',  # Progenitor/stemness marker
        'LGR5',  # Liver progenitor marker
        'AFP',  # Strongly fetal/hepatoblast marker
    ],
}

all_markers = np.hstack(list(marker_celltypes.values()))
all_markers = [g for g in all_markers if g in adata_norm.var_names]

idx = (
    adata_norm.obs['ldh_qc_pass']
    & adata_norm.obs['rna_qc_pass']
    & adata_norm.obs['rep_corr_qc_pass']
)
marker_expr = adata_norm[
    idx & (adata_norm.obs['COMPOUND'] == 'DMSO'), all_markers
].to_df()

[19]:

import matplotlib.pyplot as plt
import numpy as np

# Color palette
celltype_palette = {
    'Hepatocytes': '#1f77b4',
    'Kupffer': '#d62728',
    'LSEC': '#2ca02c',
    'HSC': '#9467bd',
    'Cholangiocyte': '#ff7f0e',
    'Dedifferentiated': '#7f7f7f',
}

# Flatten mapping: gene → celltype
marker_to_celltype = {g: ct for ct, genes in marker_celltypes.items() for g in genes}
genes = list(marker_expr.columns)
celltypes = [marker_to_celltype.get(g, 'Unknown') for g in genes]

# Plot
fig, ax = plt.subplots(figsize=(8, 3.5))
flierprops = dict(
    marker='o', markersize=1.5, linestyle='none', markerfacecolor='black', alpha=0.4
)
box = marker_expr.boxplot(
    rot=90,
    patch_artist=True,
    flierprops=flierprops,
    boxprops=dict(color='black', linewidth=1.2),
    ax=ax,
)

# Main x-axis: gene names
xticks = np.arange(1, len(genes) + 1)
ax.set_xticks(xticks)
ax.set_xticklabels(genes, rotation=90, fontsize=8)
for label in ax.get_xticklabels():
    gene = label.get_text()
    celltype = marker_to_celltype.get(gene, 'black')
    label.set_color(celltype_palette.get(celltype, 'black'))

# Y-axis: log10(counts) → raw counts
ax.set_yticks([0, 1, 2, 3, 4, 5])
ax.set_yticklabels(['1', '10', '100', '1k', '10k', '100k'])

# Horizontal guide
ax.axhline(3, ls='--', lw=1, color='gray')

# Compute midpoints for grouped cell types
unique_blocks = []
start_idx = 0
for i in range(1, len(genes)):
    if celltypes[i] != celltypes[i - 1]:
        mid = (start_idx + i - 1) / 2 + 1
        unique_blocks.append((mid, celltypes[i - 1]))
        start_idx = i
mid = (start_idx + len(genes) - 1) / 2 + 1
unique_blocks.append((mid, celltypes[-1]))

# Add cell type labels below the plot (just below x-axis)
y_pos = -0.5  # adjust as needed
for x, label_text in unique_blocks:
    ax.text(
        x,
        y_pos,
        label_text,
        ha='center',
        va='top',
        fontsize=9,
        fontweight='bold',
        color=celltype_palette.get(label_text, 'black'),
        transform=ax.get_xaxis_transform(),
    )

# Final touches
ax.set_title('Expression of Liver Cell-Type Markers', fontsize=12)
ax.set_ylabel('Counts (normalized)', fontsize=10)
plt.tight_layout()
plt.show()

../_images/reproducibility_3.1_Validation_Gene_Signatures_23_0.png

DESeq2

[ ]:

%%capture

from dask.distributed import LocalCluster, Client

cluster = LocalCluster(n_workers=8, threads_per_worker=1, memory_limit='auto')
client = Client(cluster)

[ ]:

adatas = {}

for plate in np.unique(adata.obs['PLATE_NAME']):
    adata_batch = adata[adata.obs['PLATE_NAME'] == plate].copy()
    adata_batch = adata_batch[
        adata_norm.obs['ldh_qc_pass']
        & adata_norm.obs['rna_qc_pass']
        & adata_norm.obs['rep_corr_qc_pass']
    ].copy()

    adata_batch.obs_names_make_unique()

    adatas[plate] = dmap.pp.deseq2(
        adata_batch,
        pert_name_col='COMPOUND',
        other_pert_cols=['DOSE_LEVEL'],
        dask_client=client,
    )

    adatas[plate].obs['PLATE_NAME'] = plate

[ ]:

adata_deseq = ad.concat(adatas.values(), join='outer')

[ ]:

np.sum(~np.isnan(adata_deseq.X[~np.all(np.isnan(adata_deseq.X), 1)].sum(0)))

[ ]:

adata_deseq = adata_deseq[~np.all(np.isnan(adata_deseq.X), 1)].copy()

Push file to S3

[ ]:

# dmap.s3.write(adata_deseq, 'validation_data_deseq2.h5ad', package_name='public/data')
